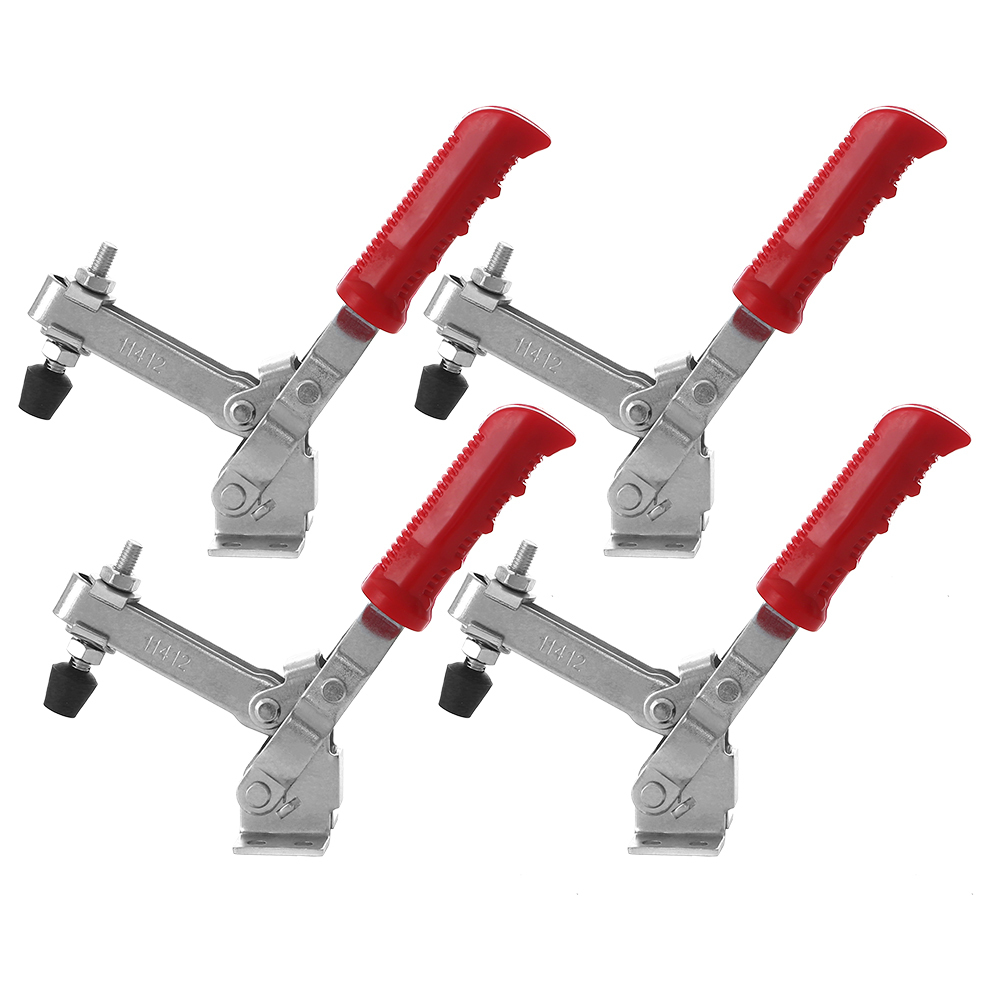

4 Pieces 11412 Vertical Toggle Clamps 450LB Steel Quick Release Hand Tool
Email when stock available
- Reviews (0)

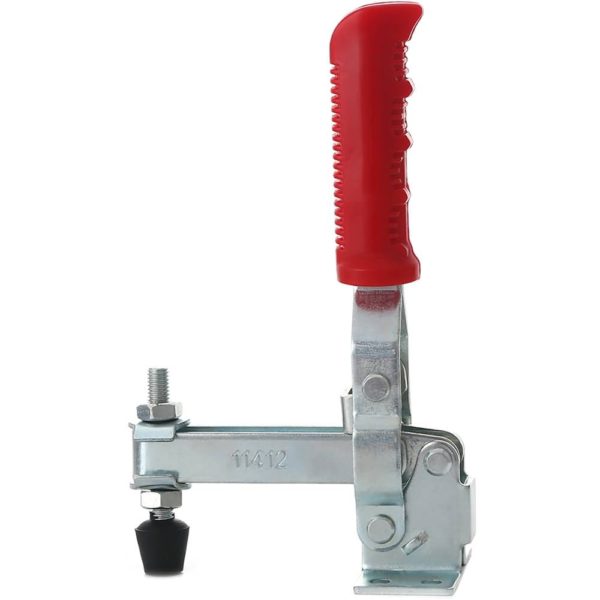

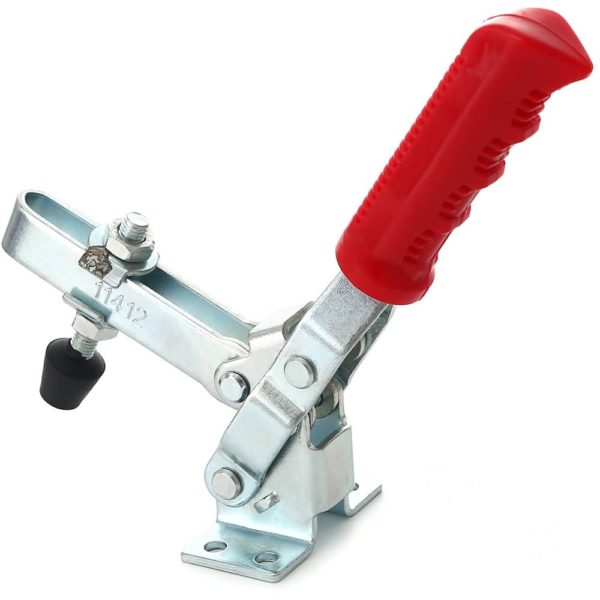

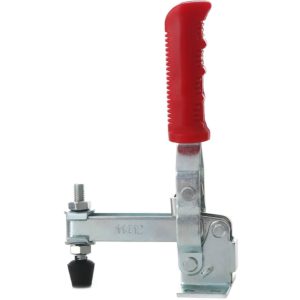

Introducing the Heavy Duty Quick Release Vertical Toggle Clamp by FactorDuty. This clamp is an absolute must for any jig assembly, tool fixture or movable base. It features a vertical front mount push toggle design that provides an adjustable and secure hold, plus a quick release for many of your woodworking projects that require specific production clamping for drilling, welding or milling. Whether youre a professional or DIY type of person, some projects require that you handle clamps in a vertical position when space is an issue or horizontal clamps interfere.

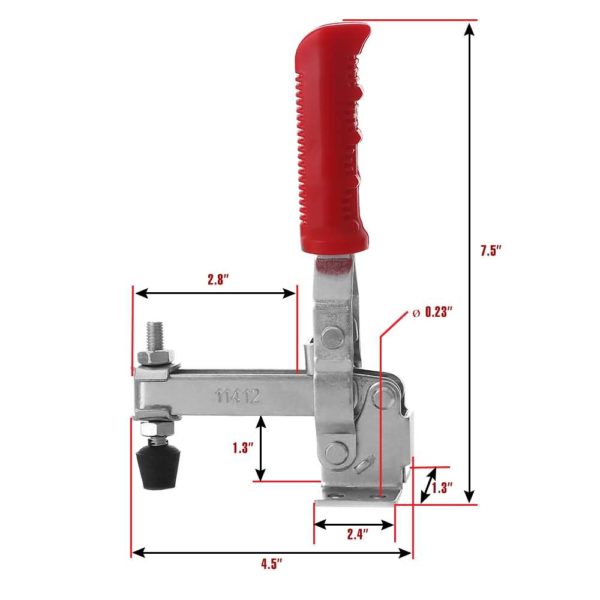

TOGGLE CLAMP SIZE: Vertical quick release long bar toggle clamp – Height 7.5″, Width 4.5″, Height Under Bar 1.3″, Bar Length 2.8″, Plate Size 2.4″ x 1.3″, Mounting hole dimensions 0.23″.

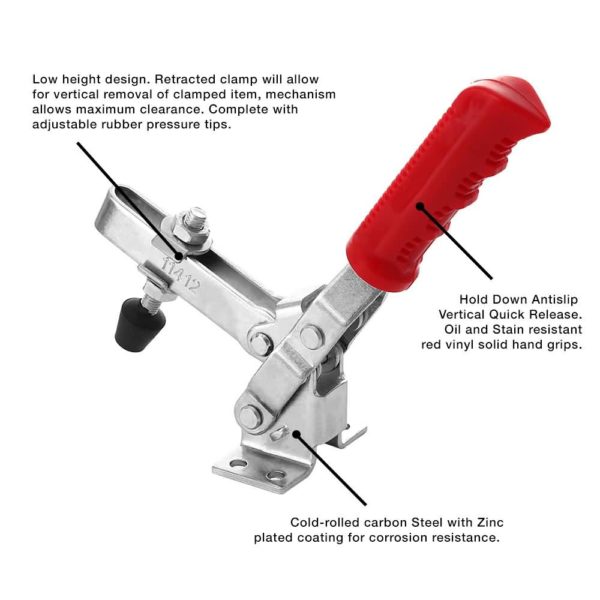

MATERIAL: Heavy duty toggle clamps made of cold-rolled Carbon Steel with Zinc plated coating for corrosion resistance; Oil and Stain resistant red vinyl solid hand grips, complete with adjustable rubber pressure tips.
DESIGN: Low height design. Retracted long bar toggle clamp will allow for vertical removal of clamped item, mechanism allows maximum clearance.
APPLICATION: These Long Bar Toggle Clamp are perfect for a rock-solid grip to install on jigs, tool fixtures, tool holders or movable bases, are ideal for fast fixing of metal plates or boards for machine operations, woodworking, welding, molds and more.
- Model: 11412
- Type: Vertical Toggle Clamp
- Holding Capacity: 440 lbs each clamp
- Height: 7.5 Inch
- Width: 4.5 Inch
- Height Under Bar: 1.3 Inch
- Bar Length: 2.8 Inch
- Plate Size: 2.4 Inch x 1.3 Inch
- Mounting Hole Dimensions: 0.23 Inch
- Handle: Vinyl colored grip.
- Material: Steel
